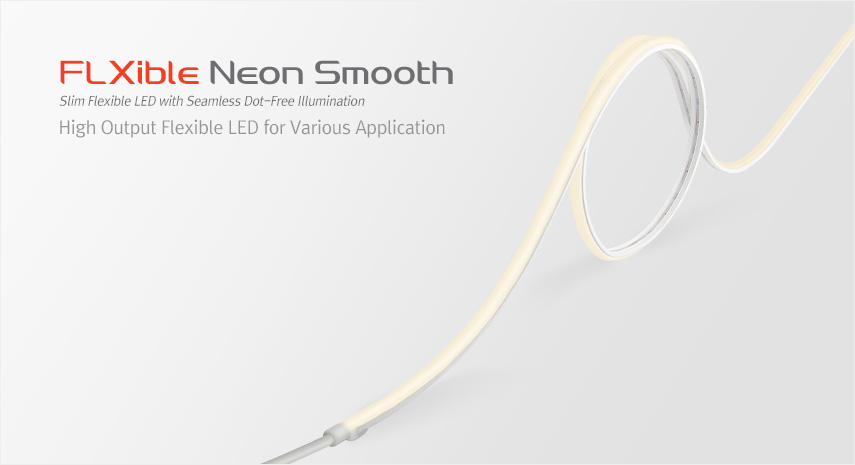

FLXible Neon Smooth
- - Seamless Dot-Free Illumination
- - Ultra Slim
- - High Efficiency / High Output (125lm/W)
- - High CRI (CRI 90)
- - Bend Direction Vertically

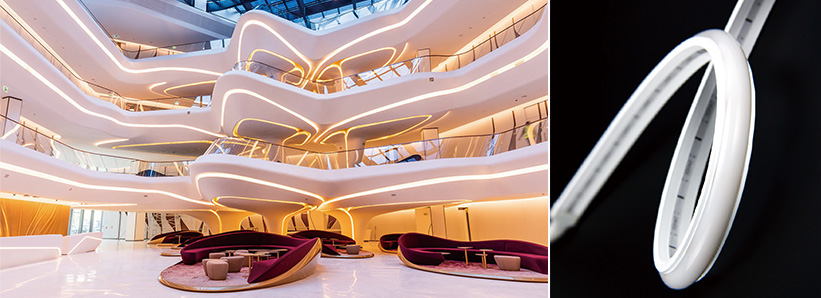

- - Indoor/Outdoor Application (IP67)

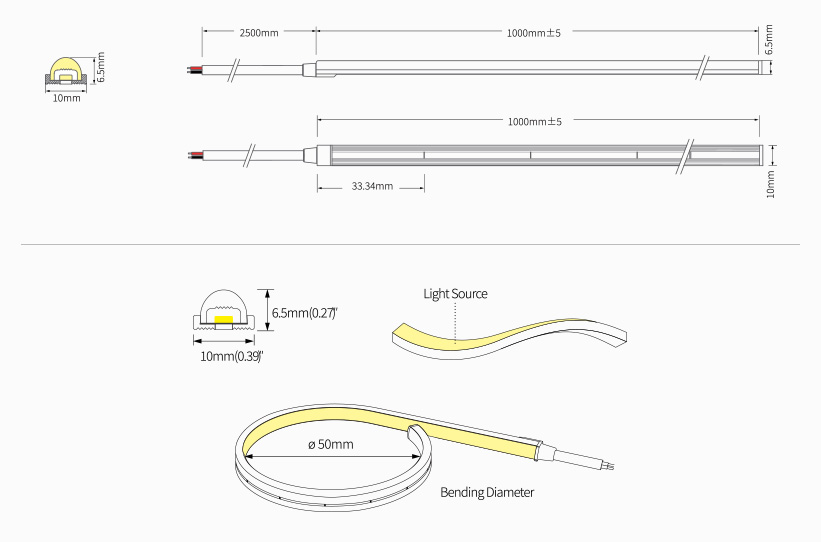

- - Field Cuttable (33.34mm)
- - Available in Standard Lengths of 5M reels
- - Dimmable
| Model Number | Color Temperature | Lamp Power | Luminous Flux | Lumen/W |
|---|---|---|---|---|
| FNS15 27K-24V-C90 | 2700K | 13.44 W/m | 1,578.9 lm/m | 117.43 lm/W |
| FNS15 30K-24V-C90 | 3000K | 13.28 W/m | 1,582.2 lm/m | 119.13 lm/W |
| FNS15 35K-24V-C90 | 3500K | 13.38 W/m | 1,667.9 lm/m | 124.59 lm/W |
| FNS15 40K-24V-C90 | 4000K | 13.37 W/m | 1,638.6 lm/m | 122.54 lm/W |
- - Power Input : DC 24V
- - Lamp Power : 15 W/m
- - IP Rate : IP67 with Factory Termination
- - Color Rendering : Ra > 90
- - Operating Temperature : 0-45℃
- - Beam Angle : 160°
- - Material : Silicone
- - Available Color : 2700K, 3000K, 3500K, 4000K
 |
FN Smooth | FNS15-(color)K-24V-C90-5M FNS15-(color)K-24V-C90-4M FNS15-(color)K-24V-C90-3M FNS15-(color)K-24V-C90-2M FNS15-(color)K-24V-C90-1M |
||||||
|---|---|---|---|---|---|---|---|---|
 |

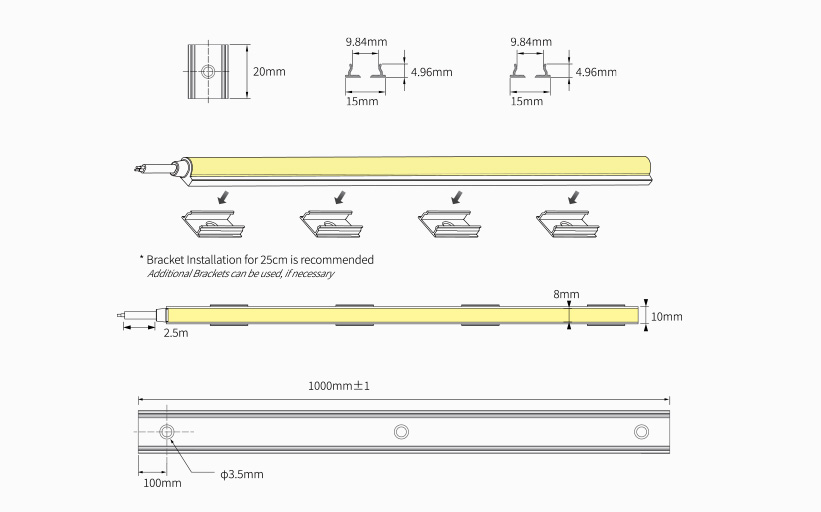

Mounting Brackets | FNS-Bracket(4pcs = 1set) | ||||||
 |
FNS Extrusion Line | FNS-EXL(1,000mm) | ||||||
 |
FNS Indoor Power cable | FNS-INPC | ||||||
 |
FNS Indoor Connecting cable | FNSPTC | ||||||
 |
FNS Indoor Connector | FNS-INCPL | ||||||
 |
FNS END CAP | FNS-ENDCAP | ||||||
 |
12 Port Hub | 12 Way distributor Included with Cord and Plug drivers.Order separately for 3rd Party Drivers | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver | FLC200-24V/T (200W) with 12way disributor | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 | FDC-L10 (Max. 100W) Video | ||||||
 |
Dimming Interface | FDA-L2MO (0-10V/1-10V, DMX512) Max. 200W (100W/CH, 2CH) FDA-L5M (DMX512) Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dail) | FDD-L1DA Max. 200W (100W/CH, 1CH) |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
