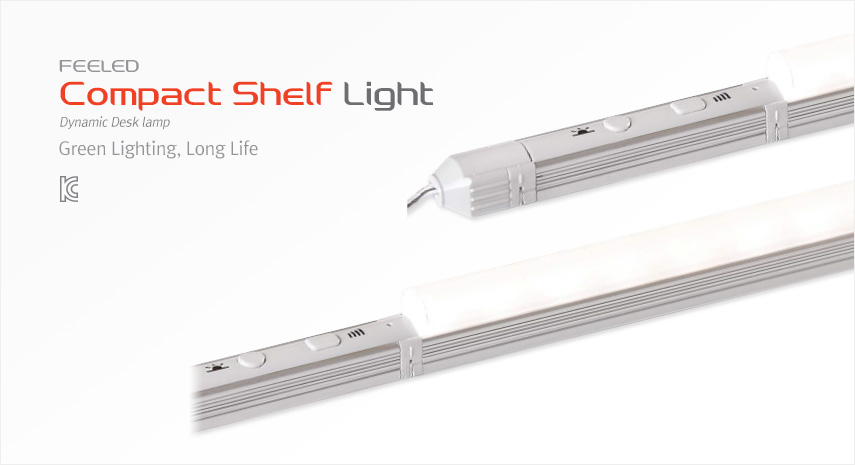

Compact Shelf Light
- - Various lighting staging enable
- - Effective desk organization with fixture installation
- - Easily installable on desks and shelves
- - Focused on user’s easy and effective usage
Characteristics

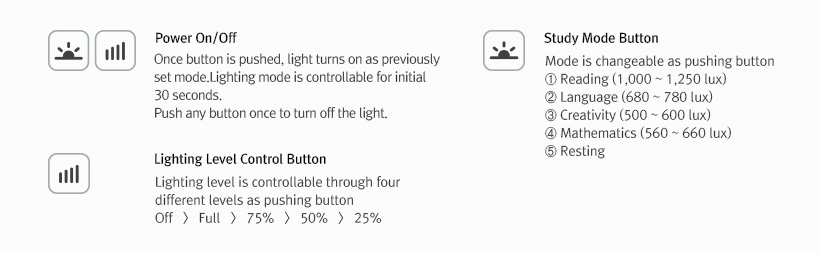

User’s Guide (Button)
- - Model Name : Compact Shelf Light-DDV
- - Power Input : AC 220V
- - Lamp Power : 12W
- - Efficiency : 80 lm/W
- - Color Rendering : Ra > 80
- - Available Color : 2,700 K ~ 6,000 K
- - Operating Temperature : -10~40℃

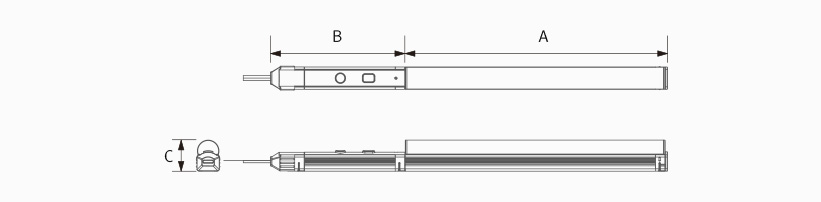

| Model Name | Power Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) |
|---|---|---|---|---|---|
| Compact Shelf Light-DDV | AC220 | 11.6 | 560 | 90 | 20 |
